| 1400H Export Folding Container Product Specifications: | ||||||

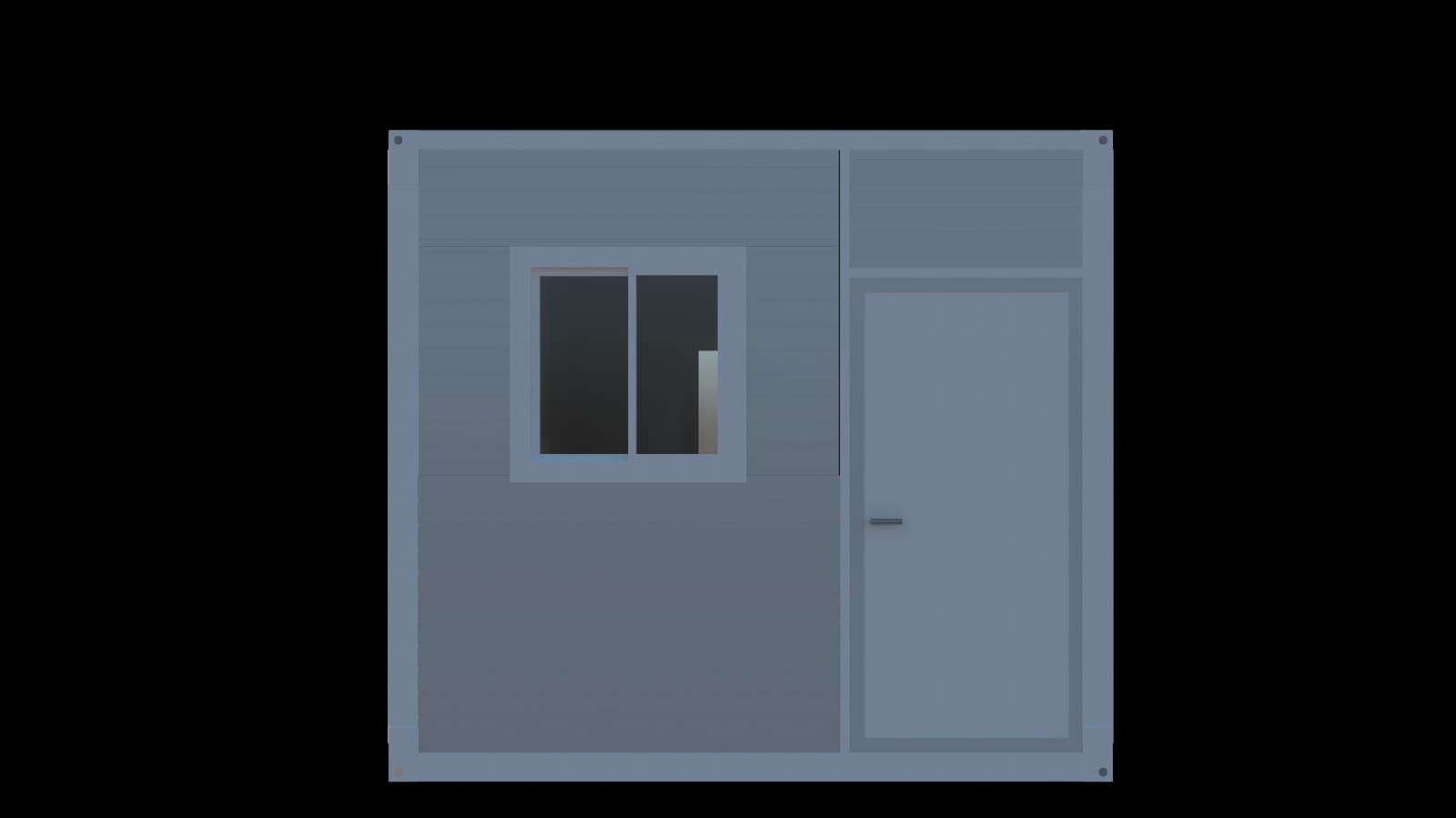

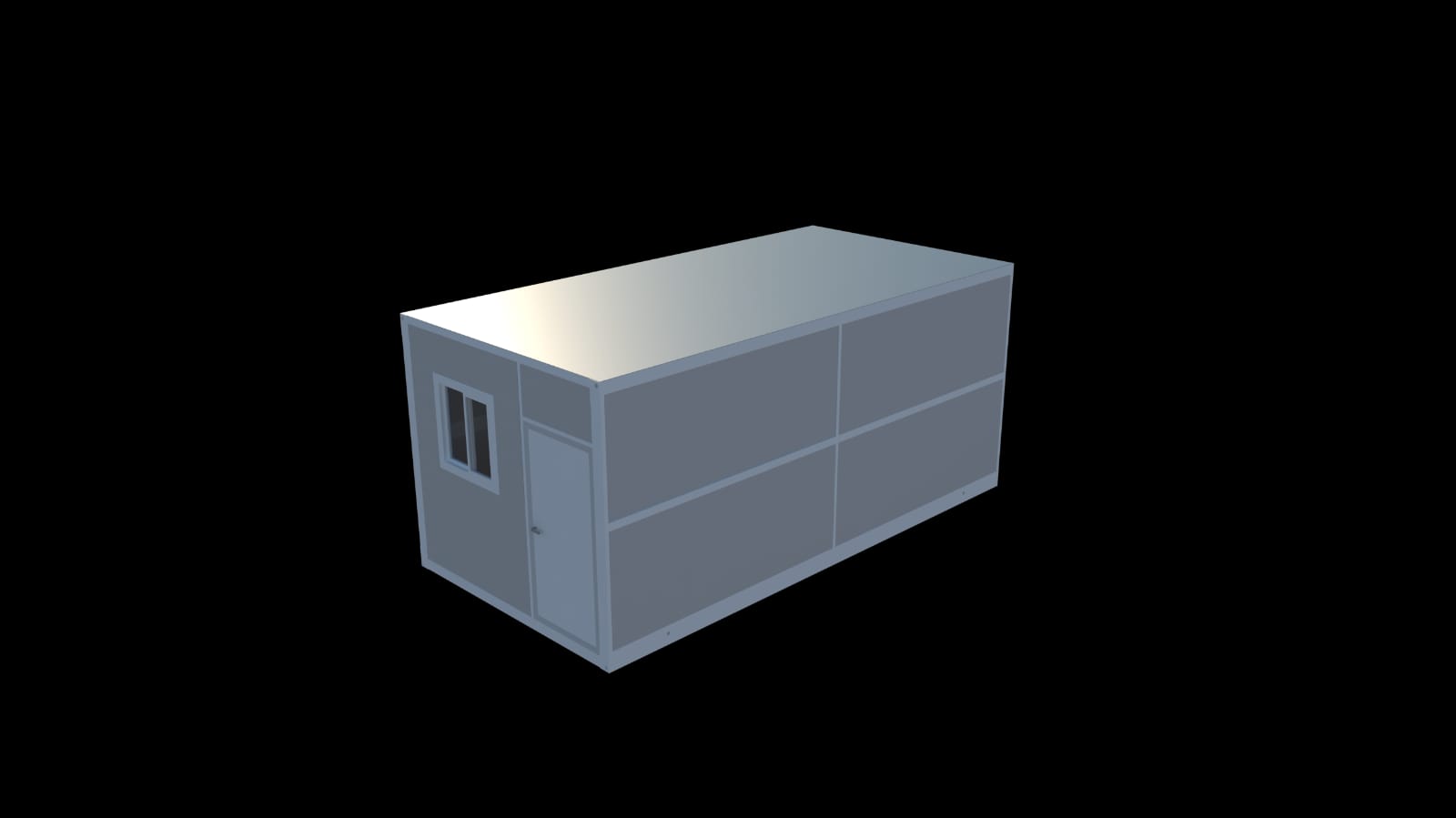

| Product pictures |   |
Weight(KG) | 960 | |||
| Basic dimension | Expanded Dimensions: Length 5900mm * Width 2480mm * Height 2540mmInternal Dimensions: Length 5720mm * Width 2360mm * Height 2410mm |
Folded Dimensions Length5900mm*Width2480mm*Heigh340（-5）mm |
||||

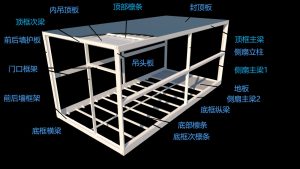

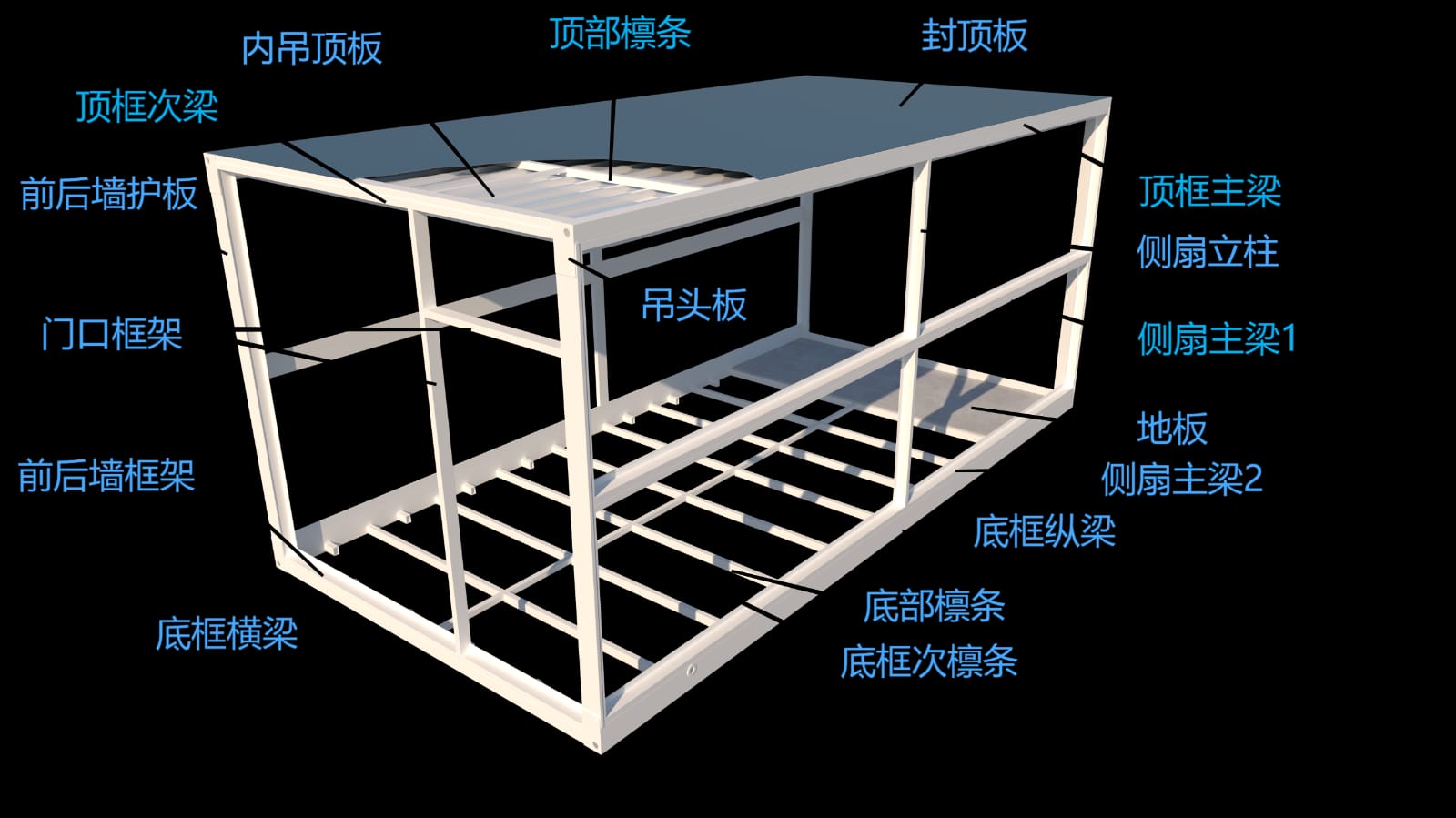

| Main steel configuration |  pictures are only for reference |
|||||
| Name | specifications | thickness/mm | Properties/Materials | Pictures | Number | |
| Bottom secondary Purlin | Galvenized tube 40*40*5.9M | 1.3 | Q235 |  |
1piece | |
| Bottom Purlin | Galvenized tube 40*40*2.36 | 1.3 | Q235 |  |
9pieces | |
| Bottom Longitudinal Beam | Galvenized tube 60*140*5.9M | 1.5 | Q235 |  |
2pieces | |
| Side Panel Main Beams 2 | Special-shaped P-pipe 40*55*5.9m | 1.3 | Q235 |  |
4pieces | |
| Floor | 2810*1180 | 18 | Magnesium Fireproof Floor |  |
4pieces | |
| Side Panel Main Beam 1 | Galvanized female and male grooved joint * 5.9m | 1.5 | Q235 |  |
4pieces | |
| Side Panel Columns | Galvenized tube 30*50*1.18 | 1.3 | Q235 |  |
12pieces | |
| Top Frame Main Beam | Special-shaped P-pipe 60*80*5.9m | 1.3 | Q235 |  |
2pieces | |

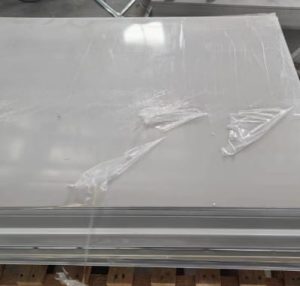

| Roofing Plate | Galvanized Color Steel Plate | 0.4 | Q235 | 14.5 square meters | ||
| Top Purlin | Galvenized tube 30*50*2.36m | 1.3 | Q235 |  |
5pieces | |
| Internal Ceiling Panel | 20 Suspended Ceiling | 0.25 | 0.25 Galvanized Color-coated Plate |  |
13.5 square meters | |
| Top Frame Secondary Purlin | Special-shaped P-pipe70*80*2.36m | 1.5 | Q235 |  |
2pieces | |
| Front and Rear Wall Protection Plate | 1160*105 | 2 | Q235 Flat Steel Plate |  |
8pieces | |
| Suspension Head Plate | 165*105 | 4 | Q235 Flat Steel Plate |  |
8pieces | |
| Front and Rear Wall Framework | Galvenized tube 40*80* 2.34m*2/2.33m*2 |
1.2 | Q235 |  |
4pieces | |
| Door Frame | Galvanized Grooved Joint 40*70 *2.33m*1/0.97*1 piece |
1.2 | Q235 |  |
2pieces | |
| door and window | Door | Width 970mm * Height 1970mm, 0.4mm Steel Security Door |  |
1 piece | ||

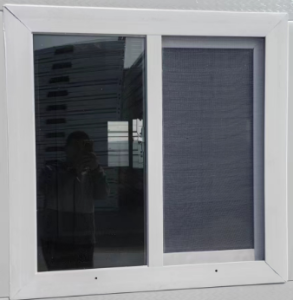

| Window | Double Glazed Main and Sub Frame Sliding Windows | PVC Material |  |
2 pieces | ||
| electrical system | Main Line | 4mm² National Standard Soft Copper Wire |  |
5m | ||
| Lighting Line | 1.5mm² National Standard Soft Copper Wire | 4m | ||||
| Socket Line | 2.5mm² National Standard Soft Copper Wire | 18m | ||||
| Grounding Wire | 1.5mm² National Standard Soft Copper Wire | 8m | ||||
| light | Strip Light | 21W |  |
1pieces | ||
| socket | International three-pin sockets, 10A 1piece, 16A 1piece | 10A*2/16A*1 | 3pieces | |||
| switch | switch | 10A | 1pieces | |||

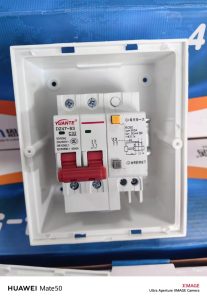

| air circuit-breaker | 32A |  |
1piece | |||

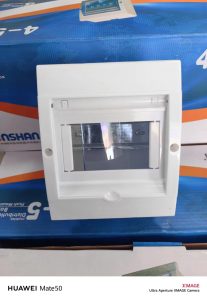

| Junction Box |  |
1piece | ||||

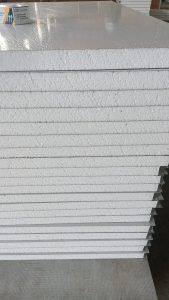

| Insulation Configuration | Front and Rear Walls | 65mm Thick EPS Purification Board, Density 12kg | 0.3 |  |
7.5m | |
| Six-meter Side | 50mm Thick EPS Purification Board, Density 12kg | 0.3 |  |
23.5m | ||

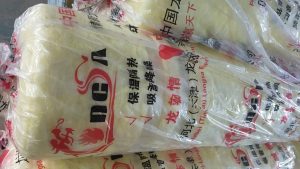

| roof | 75mm glassfiber 14KG |  |
14 square meters | |||

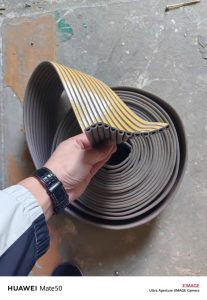

| Excipients | D-shape Adhesive strip | 8mm*6mm |  |
180m | ||
